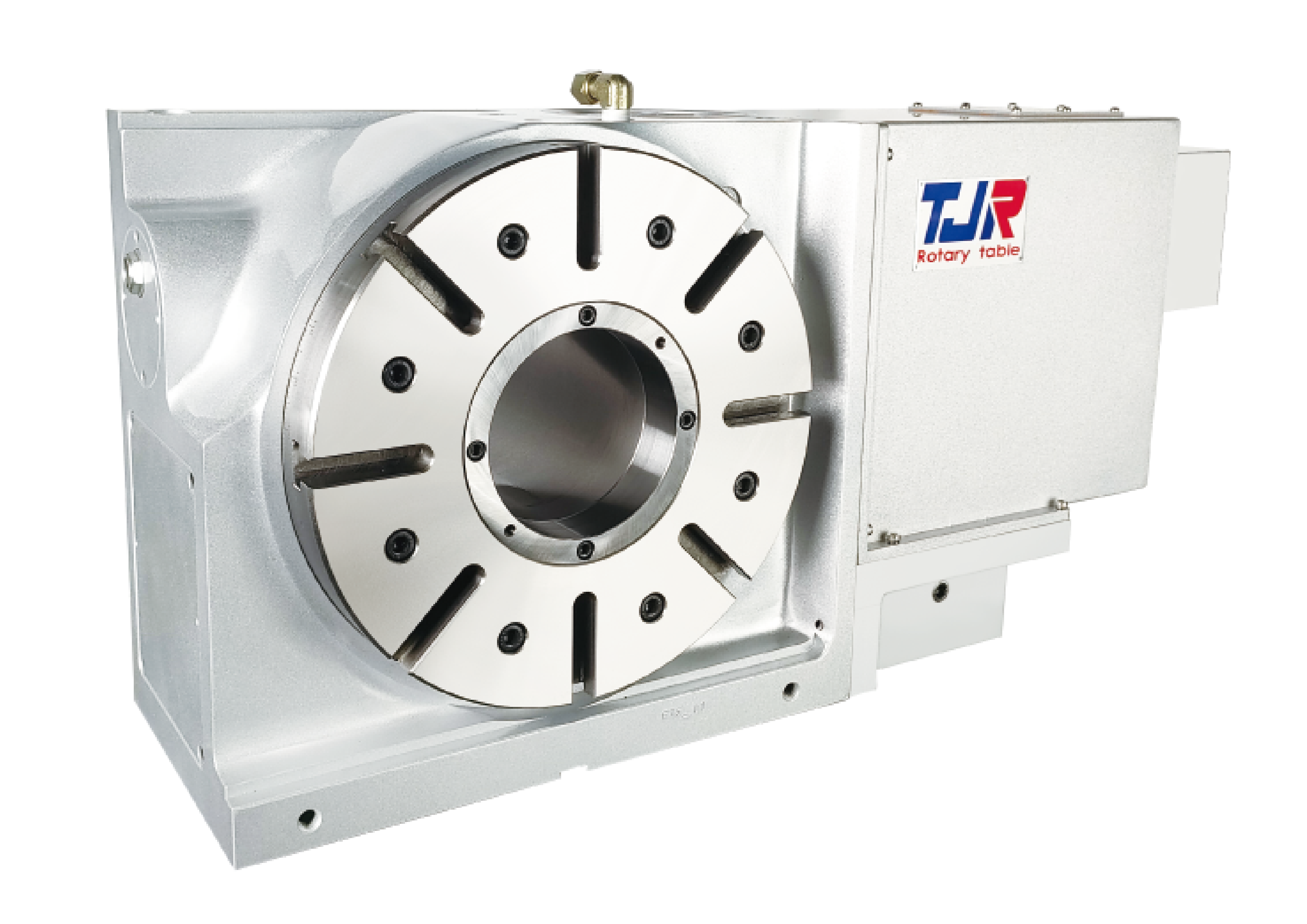

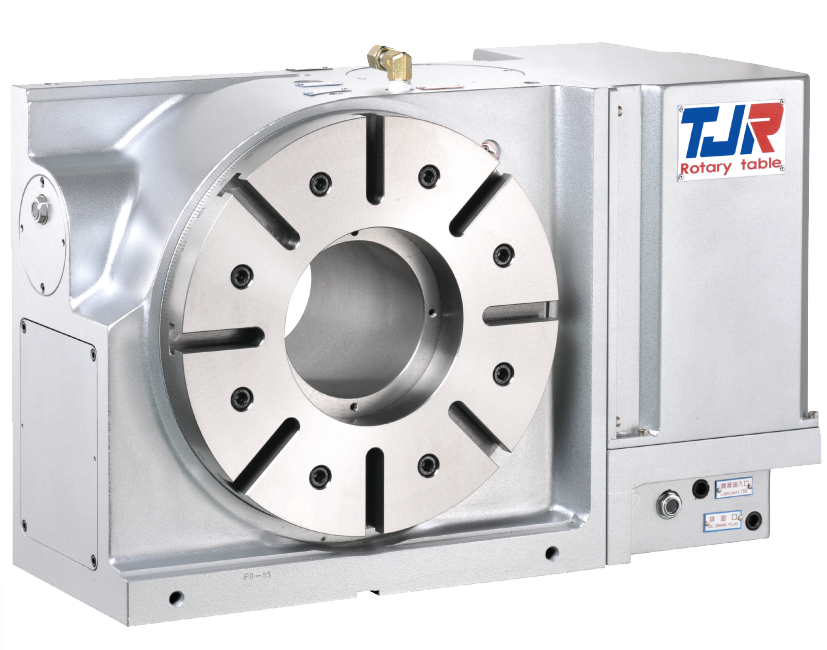

HR Series Ø255-800 Hydraulic Brake

HR-255R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 100

Allowable workpiece load (with support table)(kg): 250

Allowable workpiece load (Horizontal)(kg): 250

HR-255G

Application: Vertical or Horizontal

Center height (Vertical)(mm): 190

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 100

Allowable workpiece load (with support table)(kg): 250

Allowable workpiece load (Horizontal)(kg): 250

HR-320R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 210

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 150

Allowable workpiece load (with support table)(kg): 350

Allowable workpiece load (Horizontal)(kg): 350

HR-400R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 255

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 200

Allowable workpiece load (with support table)(kg): 500

Allowable workpiece load (Horizontal)(kg): 500

HR-255N

Application: Vertical or Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 100

Allowable workpiece load (with support table)(kg): 250

Allowable workpiece load (Horizontal)(kg): -

HR-320N

Application: Vertical or Horizontal

Center height (Vertical)(mm): 210

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 150

Allowable workpiece load (with support table)(kg): 350

Allowable workpiece load (Horizontal)(kg): -

HR-400N

Application: Vertical or Horizontal

Center height (Vertical)(mm): 255

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 200

Allowable workpiece load (with support table)(kg): 500

Allowable workpiece load (Horizontal)(kg): -

HR-500R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 310

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 250

Allowable workpiece load (with support table)(kg): 600

Allowable workpiece load (Horizontal)(kg): 600

HR-630R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 400

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 400

Allowable workpiece load (with support table)(kg): 800

Allowable workpiece load (Horizontal)(kg): 800

HR-800R

Application: Vertical or Horizontal

Center height (Vertical)(mm): 470

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 800

Allowable workpiece load (with support table)(kg): 1500

Allowable workpiece load (Horizontal)(kg): 1500
